Pillar Die Set

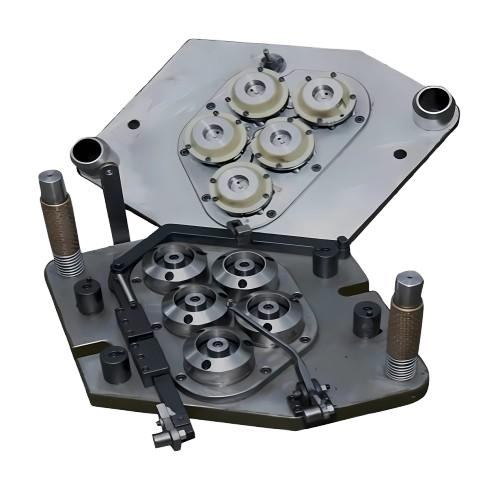

Five Cavity Die
A pillar die set is a crucial component in manufacturing processes, particularly in the fields of stamping and forming metals. This specialized tool consists of a pair of dies mounted on a sturdy support structure, often featuring columns or pillars that provide stability and ensure precise alignment during operation. The design allows for efficient force distribution, enabling the die to withstand the high pressures involved in shaping materials. Typically used in conjunction with hydraulic or mechanical presses, pillar die sets are essential for producing accurate and repeatable parts in industries like automotive, aerospace, and electronics. By utilizing these sets, manufacturers can enhance productivity while maintaining high standards of quality in their production lines.
